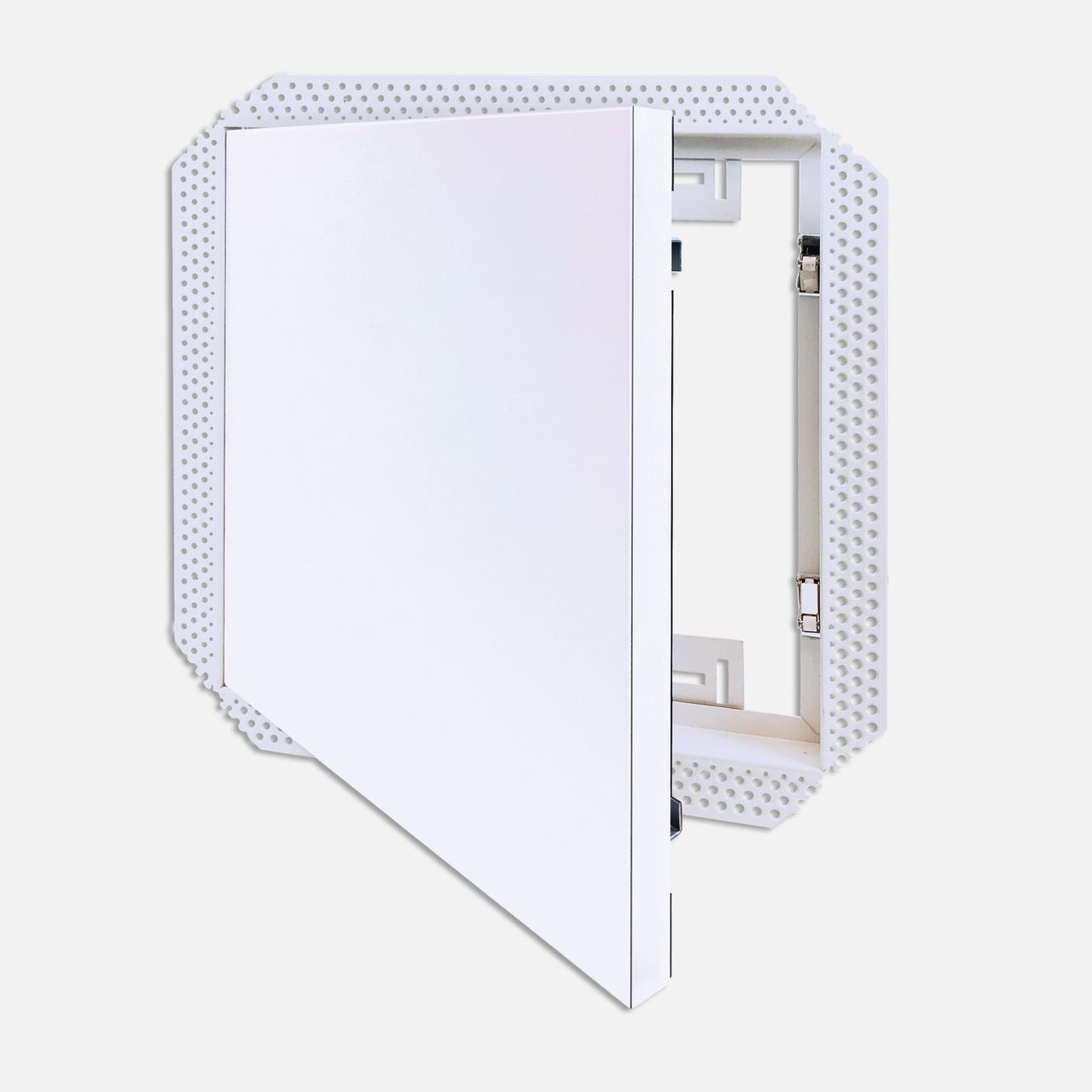

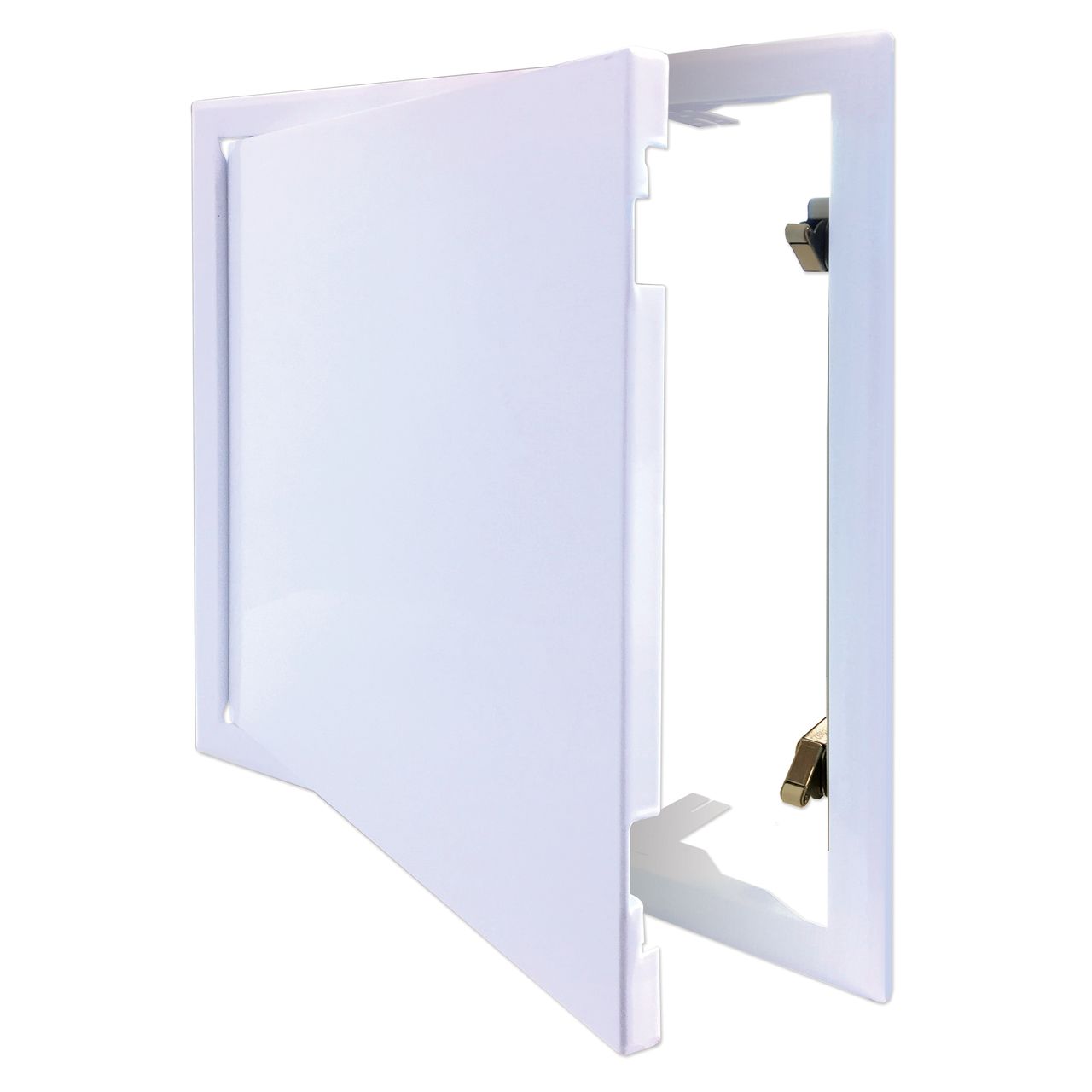

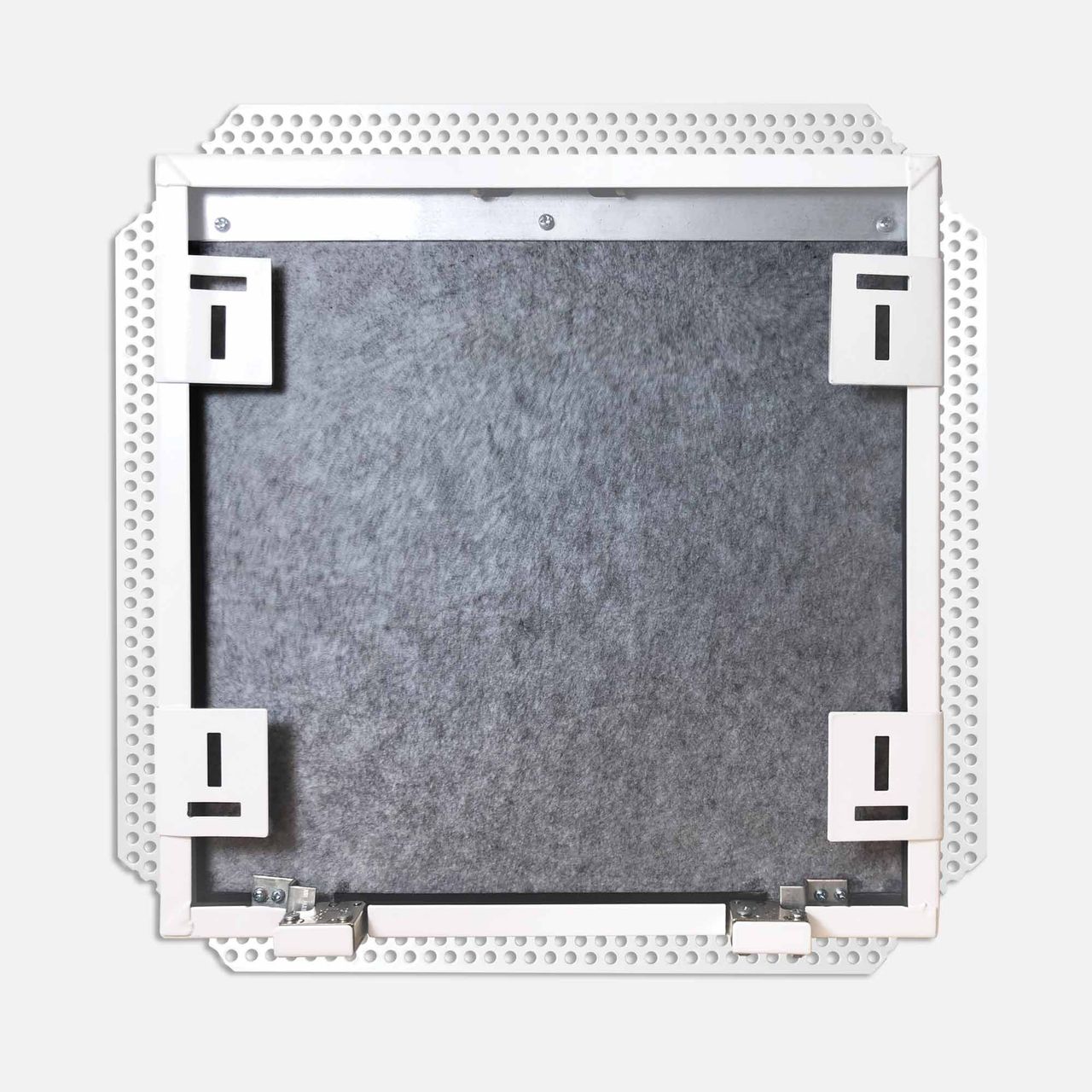

Provides easy access through non-fire-rated dry-lined walls and ceilings to concealed spaces. Head and shoulder access.

  • Pre-finished matt MDF and paint ready.

  • A ‘push-catch’ closing system with a noise-reducing liner.

  • Metal frame with beaded plaster-ready trim.

  • Perfect for both residential and commercial buildings.

Installation
  • Measure across the inner flanges for the access panel.

  • Cut a hole in the plaster board to match measured panel size adding 2.5mm each side to allow for clearance (e.g. 605 x 605mm for the 600mm panel).

  • For 600 x 600 mm access panel, frame out the cut opening on the hidden (non visible) side of the plasterboard. Check access panel fit before fixing off the opening framing.

  • Bend the steel tie tags, located around the inside of the frame to the vertical position and slot the hatch (without door for easy installation) into the framed opening.

  • Secure the steel tie tags to the stud or support framing OR fold them over to secure to the plaster board.

  • Fix screws through the access panel frame and tags to the timber supporting framing until the access panel is flush and securely fixed.

  • Insert the door and secure with screws provided.

  • Plaster in the beaded trims surrounding the access panel.

  • Paint the access panel and plastered areas to match.

Technical
information

Downloads

Browse downloadable product files.

SKUs List
VENTMCOVERMATT
Access Panel, Matt, Paintable

600 x 600mm
